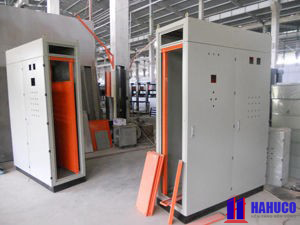

English electrical cabinet frame format is "modular enclosure" or "combinable enclosure", the parts needed for the installation and protection of electrical equipment such as switchgear, capacitor, electrical control equipment, measurement equipment electricity...
Materials commonly used as electrical enclosure includes: powder coated steel, stainless steel (Inox), aluminum alloy or composite
Electrical enclosure sizes:
Here are some common specifications cabinet frame (other specifications according to customer requirements):
Note:
Information required: Product code x thickness T + materials, finishing. Example: TKM-200-080-050 x 2.0-wrinkle cream Powder coating / Stainless Steel (2 class doors, mobile panels, high-roofed xx ...)
Materials commonly used as electrical enclosure includes: powder coated steel, stainless steel (Inox), aluminum alloy or composite
Electrical enclosure sizes:
- Common width: 600 ÷ 800mm can expand by merging several modules.
- Popular height: 1600 ÷ 2300mm
- Common depth: 400 ÷ 1000mm
- Popular material thickness: 1.5mm, 2.0mm, 2.5mm
- Popular colors: cream, gray, orange or color of the material
Here are some common specifications cabinet frame (other specifications according to customer requirements):
Note:
- Height cabinets inclusive cabinet foot height. Height is 100mm foot default cabinet. Other requirements must be specified: xx feet tall when sending requests
- Cabinet doors only one class (not including mask / side door / faceplate equipment). 2 layers cabinet doors as requested please specify: 2 layer door when sending requests
Information required: Product code x thickness T + materials, finishing. Example: TKM-200-080-050 x 2.0-wrinkle cream Powder coating / Stainless Steel (2 class doors, mobile panels, high-roofed xx ...)
Product's name | Product code | H (mm) | W (mm) | Six W (mm) | Thickness T (mm) |
Cabinet frames | TKM-160-060-040 | 1600 | 600 | 400 | 1.5 - 2.0 |
Cabinet frames | TKM-160-060-045 | 1600 | 600 | 450 | 1.5 - 2.0 |
Cabinet frames | TKM-160-060-050 | 1600 | 600 | 500 | 1.5 - 2.0 |
Cabinet frames | TKM-160-060-060 | 1600 | 600 | 600 | 1.5 - 2.0 |
Cabinet frames | TKM-160-080-040 | 1600 | 800 | 400 | 1.5 - 2.0 |
Cabinet frames | TKM-160-080-050 | 1600 | 800 | 500 | 1.5 - 2.0 |
Cabinet frames | TKM-160-080-060 | 1600 | 800 | 600 | 1.5 - 2.0 |
Cabinet frames | TKM-160-080-070 | 1600 | 800 | 700 | 1.5 - 2.0 |
Cabinet frames | TKM-160-080-080 | 1600 | 800 | 800 | 1.5 - 2.0 |
Cabinet frames | TKM-180-060-040 | 1800 | 600 | 400 | 1.5 - 2.0 |
Cabinet frames | TKM-180-060-050 | 1800 | 600 | 500 | 1.5 - 2.0 |
Cabinet frames | TKM-180-060-060 | 1800 | 600 | 600 | 1.5 - 2.0 |
Cabinet frames | TKM-180-060-070 | 1800 | 600 | 700 | 1.5 - 2.0 |
Cabinet frames | TKM-180-060-080 | 1800 | 600 | 800 | 1.5 - 2.0 |
Cabinet frames | TKM-180-080-040 | 1800 | 800 | 400 | 1.5 - 2.0 |
Cabinet frames | TKM-180-080-050 | 1800 | 800 | 500 | 1.5 - 2.0 |
Cabinet frames | TKM-180-080-060 | 1800 | 800 | 600 | 1.5 - 2.0 |
Cabinet frames | TKM-180-080-070 | 1800 | 800 | 700 | 1.5 - 2.0 |
Cabinet frames | TKM-180-080-080 | 1800 | 800 | 800 | 1.5 - 2.0 |
Cabinet frames | TKM-200-080-050 | 2000 | 800 | 500 | 2.0 |
Cabinet frames | TKM-200-080-060 | 2000 | 800 | 600 | 2.0 |
Cabinet frames | TKM-200-080-070 | 2000 | 800 | 700 | 2.0 |
Cabinet frames | TKM-200-080-080 | 2000 | 800 | 800 | 2.0 |
Cabinet frames | TKM-200-080-100 | 2000 | 800 | 1000 | 2.0 |
Cabinet frames | TKM-230-080-050 | 2300 | 800 | 500 | 2.0 |
Cabinet frames | TKM-230-080-060 | 2300 | 800 | 600 | 2.0 |
Cabinet frames | TKM-230-080-070 | 2300 | 800 | 700 | 2.0 |
Cabinet frames | TKM-230-080-080 | 2300 | 800 | 800 | 2.0 |
Cabinet frames | TKM-230-080-100 | 2300 | 800 | 1000 | 2.0 |
